View the status of a sensor

Follow

You can view the current status of an AcuRite sensor, including its battery and wireless signal strength and the date and time of last reading was sent to My AcuRite. Viewing the status of sensor is helpful when you are looking into an issue.

Status color

The status color indicator next to the name of the sensor is a quick way to determine its current status.

Green - everything is operating as expected.

Yellow - a condition may need your attention soon and should be looked into.

Red - a condition does need your attention now. Offline indicates a reading from the sensor has not been received for more than one (1) hour and a Loss of Signal alert has been activated.

AcuRite app: How to view the status of a sensor

  1. From the tab / navigation bar, selectic_home_black_24px.svg (Dashboard menu).

  2. Select on the name of the sensor.

    Sensor status definitions

    Device Name - the name of the sensor.

    Signal Strength - the radio frequency strength between the sensor and its linked AcuRite Connection Device or PC Connect Display.

    Battery Strength - the last reported battery level of the sensor.

    Last Update - the date and time its last reading and status was sent to My AcuRite.

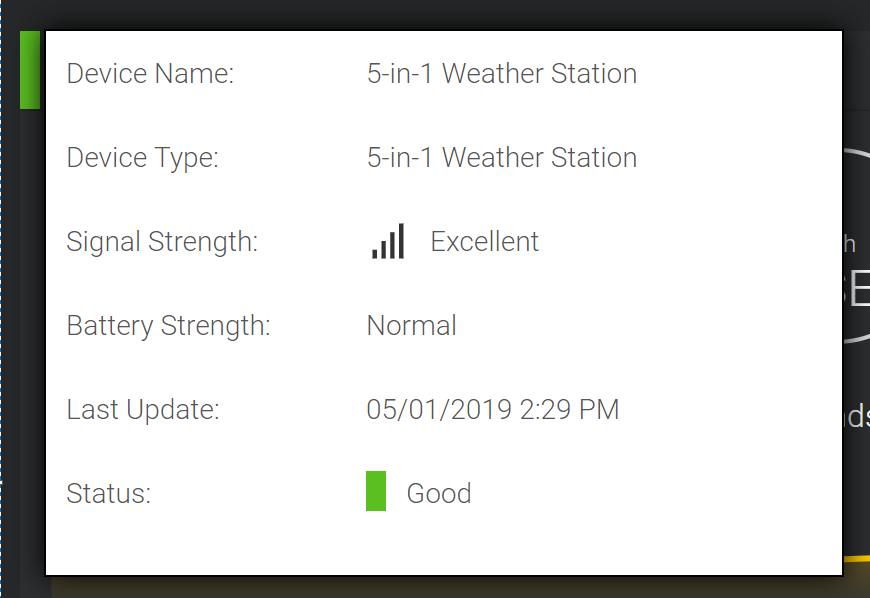

MyAcuRite.com: How to view the status of a sensor

  • From your Dashboard, select the status bar indicator located to the left of the sensor name. The status window is displayed.

Status definitions

Device Name - the name of the sensor.

Device Type - the type of sensor.

Signal Strength - the radio frequency strength between the sensor and its linked AcuRite Connection Device or PC Connect Display.

  • No Signal - a sensor reading has not been received for more than 60 seconds.

    The cause of this alert is commonly due to the sensor does not have battery power or its readings cannot be sent to My AcuRite.

    For use with a AcuRite Connection Device (smartHUB or Access device)(Elite Display - verify the sensor is in wireless range of the device and the device has a network (Internet) connection.

    For use with a PC Connect Display - verify the connection between the Indoor Display and your computer is detected, power is applied to the Indoor Display, the PC Connect software is open, and your computer has an Internet connection.

  • Poor or Weak - there is an increased risk of a loss of communication between the sensor and its linked AcuRite Connection Device. It's recommend to verify the placement of the sensor.

  • Strong or Excellent - communication between the sensor and its linked AcuRite Connection Device is operating as expected and no interference is detected.

Battery Strength - the last reported battery level of the sensor.

  • Good - battery life remaining is greater than 25 percent.

  • Low - less than 25 percent battery life left. It’s a good idea to replace the batteries soon. During this status, the status indicator color is yellow.

  • Not available - battery level is not available. The sensor may have no battery power or the sensor is not in wireless range of its linked AcuRite Connection device. During this status, the status indicator color is red.

Last Update - the date and time its last reading and status was sent to My AcuRite.

Status - a summary of any conditions that resulted in its current status.
