Hard Reset for Sensor Models 00606TX/06009RMA1 & 00609A1TXR/00609A2TX

Follow

The following reset steps can be performed to correct issues of the sensor not connecting to the display. Symptoms of the sensor not connecting to the display could include:

  • No outdoor temperature (showing dashes).
  • Outdoor temperature does not change.
  • The outdoor temperature is -40 degrees.
  • The outdoor humidity reads 1%. (Only a symptom when using Model 00609A1TXR/00609A2TX sensor)



***First, you will want to verify the model number of your outdoor sensor. The model number is located on the back of the sensor. If your sensor model number differs from those listed in the title, please reference the troubleshooting for your particular model.



You would want to ensure the following first:

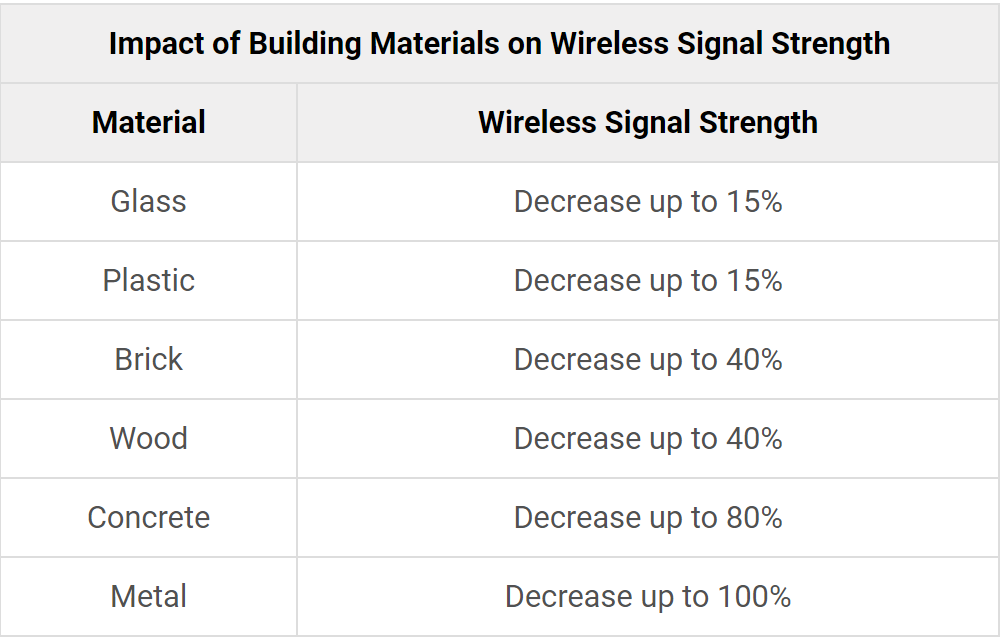

  1. Relocate the display unit and/or the sensor. Under optimal conditions, the units can be located up to 330 ft (100 m) of each other.                                                                                                                   biulding_material.PNG
  2. Units should be placed at least 3 feet (.9 m) away from electronics that may interfere with wireless communication (such as TVs, microwaves, computers, etc).
  3. Ensure that you are using recommended batteries:
  • Verify you are using fresh batteries in the sensor. Lithium batteries are recommended for installation locations where temperatures can go below -4°F/-20°C.
  • Verify you are using batteries with a nominal voltage of 1.5 volts.
    NOTE: Some rechargeable batteries carry low or inconsistent voltages that may not properly power the device.
  • Mixing different battery types (brands, old/new, etc.) is not recommended.



Hard Reset:

  1. Bring both the sensor and display unit together and remove batteries from the outdoor sensor. Make sure that the Wireless Reception Indicator on the display drops to zero bars to ensure that your display was connected to the correct sensor. (If your wireless reception indicator already indicates zero bars, please proceed to Step #2.)
    NOTE: If your display unit continues to show a strong connection, there is another sensor in your area that your display is connecting to (either a neighbor's or from another of your AcuRite units).
  2. Remove the batteries and/or power adapter from the display unit.
  3. Reinstall the batteries in the outdoor sensor.
  4. Once the batteries are inserted you should see the red LED light blink approx. every 30 seconds on the front of the sensor.  The red LED light should NOT stay on continuously.
  5. Reinstall batteries and/or power cord into the display unit.
  6. Let the units sit within a couple of feet of each other for approximately 5 minutes or until you see a solid sensor signal



If the outdoor temperature/humidity turns to dash lines or is still displaying an error code after performing the reset with recommended batteries, a replacement sensor is recommended.



Click Here to Review the Replacement Sensor Model 06009RMA1, 00606TX, 11120-606TX, 06009RM, 06009RMA1

Click Here to Review the Replacement Sensor Model 11112-609TXC, 00609A1TXR, 11112-609TXC, 00609A2TX, 00609TXR



If you are still experiencing concerns, please contact our U.S. based support staff by Submitting a Request or by chatting with our Live Agents. If you already have an open ticket with a support agent, please reply to the last email sent.
